200 sites, one operational picture: lessons from Rotterdam residential surveillance
The most demanding engineering question in large, multi-site video surveillance systems is rarely how many cameras to mount on the walls. It is how dozens or hundreds of disparate sites – built at different times, with varying layouts and network constraints – can be unified into a genuinely cohesive, operationally effective security infrastructure.
A compelling European case study comes from Hef Wonen, a major housing association in Rotterdam. Managing over 30,000 social housing units, commercial spaces, parking structures, and residential facilities across the Netherlands’ most densely populated urban area, Hef Wonen faced a massive operational challenge. According to the case report in Benchmark Magazine, the organization consolidated over 2,000 IP cameras across more than 200 residential sites onto a unified video management platform.
The core lesson of this project is not the sheer camera count. Rather, it is the systems engineering approach that turned fragmented, siloed camera islands into a single common operational picture – enabling control room operators to locate footage in seconds, providing mobile caretakers with actionable video on the ground, and ensuring future expansions do not require architectural redesigns.
The core problem: multi-site sprawl, isolated procurement, and operational fatigue
Securing a large residential property portfolio is fundamentally different from protecting a closed industrial compound. Instead of a single perimeter, security teams manage stairwells, narrow interior corridors, bike sheds, communal waste disposal points, underground garages, and open public courtyards. Each of these zones presents distinct lighting, network bandwidth, vandalism risks, and field-of-view requirements.
When procurement decisions for these locations are made piecemeal over several years, the inevitable result is operational chaos:
- Hardware and vendor fragmentation: Multiple camera brands and disparate network video recorders (NVRs) running side by side.
- Disjointed operator interfaces: Dispatchers must juggle distinct client software tools, browser portals, and separate login credentials.
- Inconsistent resolution and retention: Some buildings record for 3 days while others store 14 days, with highly variable image clarity.
- Cumbersome field access: Mobile patrols and on-site caretakers cannot access live streams when responding to an incident in a stairwell.
- Delayed fault diagnosis: Weeks pass before anyone notices that a vandalized or out-of-focus camera stopped recording entirely.
In such an environment, operators work slowly not because they lack technology, but because information is disorganized. Investigating a single complaint requires logging into multiple systems, guessing camera labels, and hoping the local hard drive has not failed. As I emphasized in my article Good system design does not begin on the floor plan, security engineering starts with operational workflows, not hardware placement.
The foundation of the Hef Wonen project was therefore not a simple hardware refresh, but the creation of a single Common Operational Picture across the entire portfolio.
Centralization does not mean forcing everything into a physical bunker
In physical security, central video management (VMS) is frequently misunderstood. Many assume that centralization requires routing every video stream and clustering all operators into a single central control room. In a distributed multi-site architecture, that approach leads to catastrophic WAN bandwidth saturation and single-point-of-failure bottlenecks.
True centralization is logical, workflow-based, and architectural:
In the Rotterdam deployment, cameras were integrated into the Wisenet WAVE (Hanwha Vision) video management platform. The underlying architecture allows video streams to be recorded on decentralized local servers, while the user interface – across desktop workstations, web browsers, and mobile client apps – remains completely unified. An operator or an on-site caretaker navigates the exact same hierarchical tree and interactive maps whether pulling up a corridor in district 12 or an underground car park across the river.
This illustrates the critical divide between passive technology and an active security workflow. A camera on its own is merely a pixel-generating sensor. Genuine security value emerges only when video fulfills five criteria:
- It is mapped accurately to the specific location, doorway, or triggered event;
- It can be retrieved from archives in seconds using consistent visual search tools;
- It satisfies standard resolution criteria under EN 62676-4 (DORI);
- It is accessible strictly to authorized personnel based on least-privilege principles;
- It integrates seamlessly into a legally compliant, audited chain of custody.
A multi-site surveillance deployment is validated not by the sea of camera icons on an architectural drawing, but by how many minutes it takes for relevant, verified intelligence to reach the decision-maker during an active incident.
Standardization does not mean uniform hardware: task-specific optical design
Across Hef Wonen’s properties, over 2,000 units of 2-megapixel (Full HD) dome cameras were deployed. This provides an instructive engineering takeaway: standardization must never degenerate into rigid uniformity.
Designers frequently make the mistake of specifying a single camera model across an entire facility to simplify procurement. Yet physical optics and environmental realities cannot be standardized away:
- Narrow corridors and hallway view (9:16 aspect ratio): In a standard 16:9 widescreen orientation, mounting a camera down a 2-meter-wide corridor wastes 60–70% of pixel resolution on blank walls and acoustic ceiling tiles, while leaving the far end severely undersampled. Hallway View rotates the sensor orientation to 9:16 vertical, focusing the entire pixel density along the corridor’s depth. A person approaching at 20 meters is captured with double the pixels on target.

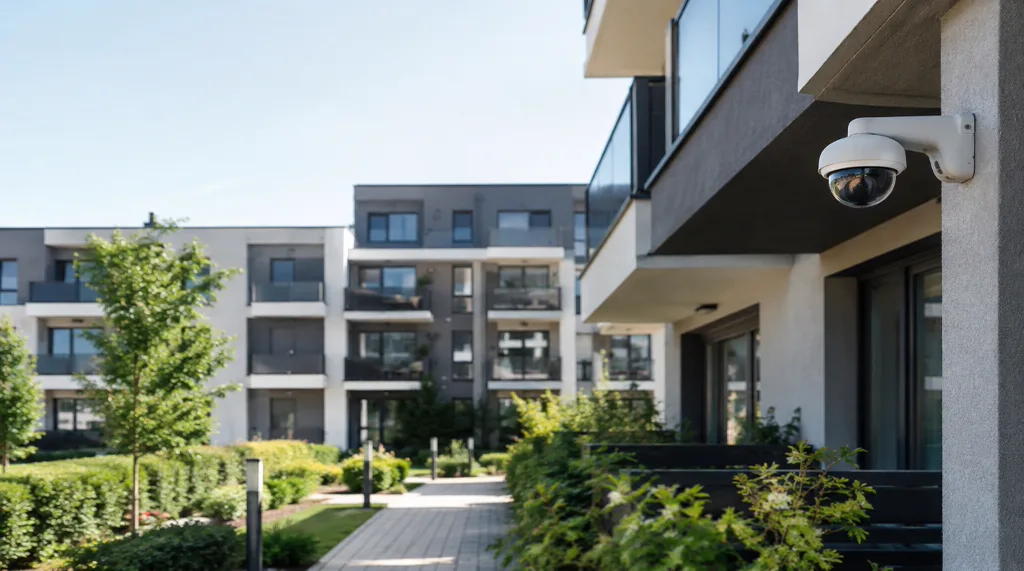

- Outdoor entrances and communal waste sites: At exterior doorways and bin stores, physical robustness and dynamic range dominate. The outdoor domes chosen for Hef Wonen feature IP66 weatherproofing and IK10 vandal resistance. Furthermore, entrances demand true hardware WDR (Wide Dynamic Range, 120–150 dB): without it, mid-day sunlight pouring through an opened glass entrance door leaves the entering subject rendered as an unidentifiable black silhouette.
The core rule of surveillance engineering remains: start from the operational objective, never from the catalog product.
Every camera location must be evaluated against clear engineering criteria:
- What specific event must be detected, tracked, or evidenced?
- What DORI tier is required: Detection, Observation, Recognition, or Identification?
- What are the diurnal lighting variations, artificial illumination levels, and backlight extremes?
- What is the physical exposure to vandalism, impact, moisture, or spray paint?
- Who needs to view the footage, on what device, and for what operational decision?
Alarm quality over volume: why defocus and tampering detection are essential
Multiplying camera counts without disciplined alarm filtering does not improve safety – if every rustling leaf, raindrop, or passing pet triggers a notification, control room operators experience alarm fatigue and disable alerts within days.
In Rotterdam, alongside targeted motion analytics, two specific onboard camera analytics serve as the first line of defense for system availability:
- Tampering detection: Instantly alerts the VMS if a camera head is rotated, covered with cardboard, or sprayed with paint. In a 200-site unstaffed residential network, this prevents perpetrators from neutralizing surveillance undetected prior to a break-in.
- Defocus detection: One of the most insidious failure modes in CCTV occurs when a camera appears fully operational – online, streaming, and recording – while dirt, cobwebs, or vibration-induced lens drift render the image blurry and unreadable. Weeks later, when critical footage is needed, the recording is useless. Defocus analytics automatically detect contrast degradation below baseline thresholds, opening an automated maintenance ticket before an incident occurs.
Technical alarms deliver value only when governed by defined escalation protocols. A defocus alert opens a non-urgent maintenance order; an exterior door held open past midnight triggers an immediate patrol dispatch. Algorithmic intelligence succeeds only where hardware and operational standard operating procedures (SOPs) meet.
The hidden infrastructure: network bandwidth, storage, and WiseStream II
When connecting over 2,000 cameras across 200 distributed residential buildings, WAN network bandwidth and centralized storage requirements are foundational engineering constraints, not afterthought IT details.
Streaming 2,000 Full HD cameras over H.264 at standard bitrates (around 4 Mbps) would demand over 8 Gbps of continuous WAN throughput and petabytes of monthly storage. Across distributed residential buildings reliant on commercial broadband, such requirements are cost-prohibitive.
Hef Wonen deployed Hanwha’s WiseStream II dynamic compression in conjunction with H.265 encoding. The technical mechanism operates dynamically:
- Motion-adaptive compression: The encoder continuously monitors pixel motion vectors. When a hallway or courtyard is quiet, background areas are heavily compressed and the Group of Pictures (GoP) interval is extended.
- Region of interest fidelity: The instant an individual or vehicle enters the scene, the encoder allocates full bitrates to the moving subject, preserving sharp facial and clothing textures.
- Bandwidth reduction: This hybrid approach reduces storage and bandwidth demands by 50–75% without compromising forensic evidential value.
Capacity planning also requires clear resilience architectures: continuous vs. motion-based recording rules, statutory retention limits, and on-camera Edge Storage (microSD fallback during WAN dropouts, with automatic backfilling to the central archive upon link restoration).
Open API integration and cybersecurity governance
A key strength of Wisenet WAVE is its open REST API and software development kit (SDK). In modern property technology, video surveillance rarely operates in isolation. In a mature residential ecosystem, it connects directly with:
- Electronic access control (generating visual bookmarks on badge swipes);
- Fire and intrusion alarm panels (triggering instant camera pop-ups upon alarm);
- Facility management ticketing platforms (logging hardware faults automatically);
- Security patrol dispatch workflows.
However, open connectivity requires strict cyber governance. As explored in my article on IP camera network security, every API integration and external data exchange represents a potential threat vector unless protected by encrypted sessions (HTTPS/TLS), role-based access controls, and auditable event logging.
Resident trust and privacy engineering: foundational requirements
In residential environments, security cameras are deeply personal. Their deployment directly affects residents’ privacy, comfort, and sense of home.
No surveillance system can succeed long-term if residents view it with suspicion. Engineering for trust under GDPR and European privacy laws requires strict safeguards:
- Purpose limitation and proportional scoping: Private balconies, windows, and apartment doorways must never be monitored. Where incidental sightlines occur, dynamic or static privacy masking must hard-code blacked-out zones at the camera level.
- Strictly audited access: Video streams and archives must never be viewed casually. All live viewing sessions, search queries, and footage exports must be logged in an immutable audit trail.
- Formal chain of custody: Evidence exports must follow structured protocols, available exclusively upon official law enforcement subpoenas.
Practical takeaways for multi-site and housing facility projects
While the Rotterdam deployment reflects a large metropolitan housing corporation, its engineering methodology applies directly to residential developments, corporate campus estates, municipal facilities, and multi-branch retail networks.
A structured modernization pathway should follow five steps:
- Engineering site survey and infrastructure audit: Document existing camera assets, cabling infrastructure, WAN bandwidth capacities, and NVR lifecycles across all sites.
- Define task-specific observation zones: Establish precise DORI objectives for each architectural zone (corridors, entrances, parking, refuse areas) and specify appropriate optics (Hallway View, WDR, IK10).
- Establish a unified VMS framework before hardware purchasing: Define interface hierarchies, permission matrices, and mobile access workflows prior to hardware procurement.
- Multi-site pilot testing: Validate cameras and VMS performance across a representative sample of challenging sites (e.g., a dark garage, a high-contrast entrance, a narrow stairwell) under live operational conditions.
- Operational maintenance and governance SOPs: Implement defocus and tampering health checks, scheduled lens cleaning, and quarterly access reviews to ensure the system does not degrade over time.
The enduring takeaway from Hef Wonen is clear: real security effectiveness is not measured by camera counts on a spec sheet, but by the operational clarity, technical resilience, and rapid human decision-making that a unified surveillance architecture makes possible.
